The popular clothing dust cleaner has been renewed to be smaller, lighter and with higher static pressure.

Models compatible with power supply voltages in China and Thailand are also available.

catalog【Chinese】

　

catalog【English】

What is a clothing dust cleaner?

A device that sucks and removes hair and dust from clothes. It can be used to prevent foreign objects such as hair and dust from being brought into factories, and is ideal as a replacement or supplement for adhesive rollers.
■ Place of use


Food factories, pharmaceutical and cosmetic factories, semiconductor and precision factories, central kitchens, etc.

■Usage image


The nozzle structure makes it easy to use on your back and the flexible hose makes it easy to use on your whole body.		Powerful dust suction: Maximum blower static pressure is 20kPa

Features of Kotohira's clothing dust cleaner


The expected life of the brushless motor is now 5,000 hours (previous model: approx. 400 hours).	The main body is made of stainless steel (SUS430) for easy hygiene management. No dust is generated from the equipment.	The static electricity removal sheet on the nozzle removes static electricity from the body, making it easier to pick up dust and hair and preventing them from re-adhering.

1. Powerful dust collection

The blower’s maximum static pressure and powerful suction force effectively sucks up hair and dust even in the creases of clothes (conventional model: 15.5kPa)

2. Easy suction all over the body

The unique nozzle shape and flexible hose are designed to fit the human body, making it easy to place on your back. You can easily suck up dust in hard-to-reach places by yourself.

3.Compact structure

The main body is made of stainless steel (SUS430), is more compact than conventional models, takes up less space, and makes hygiene management easier.

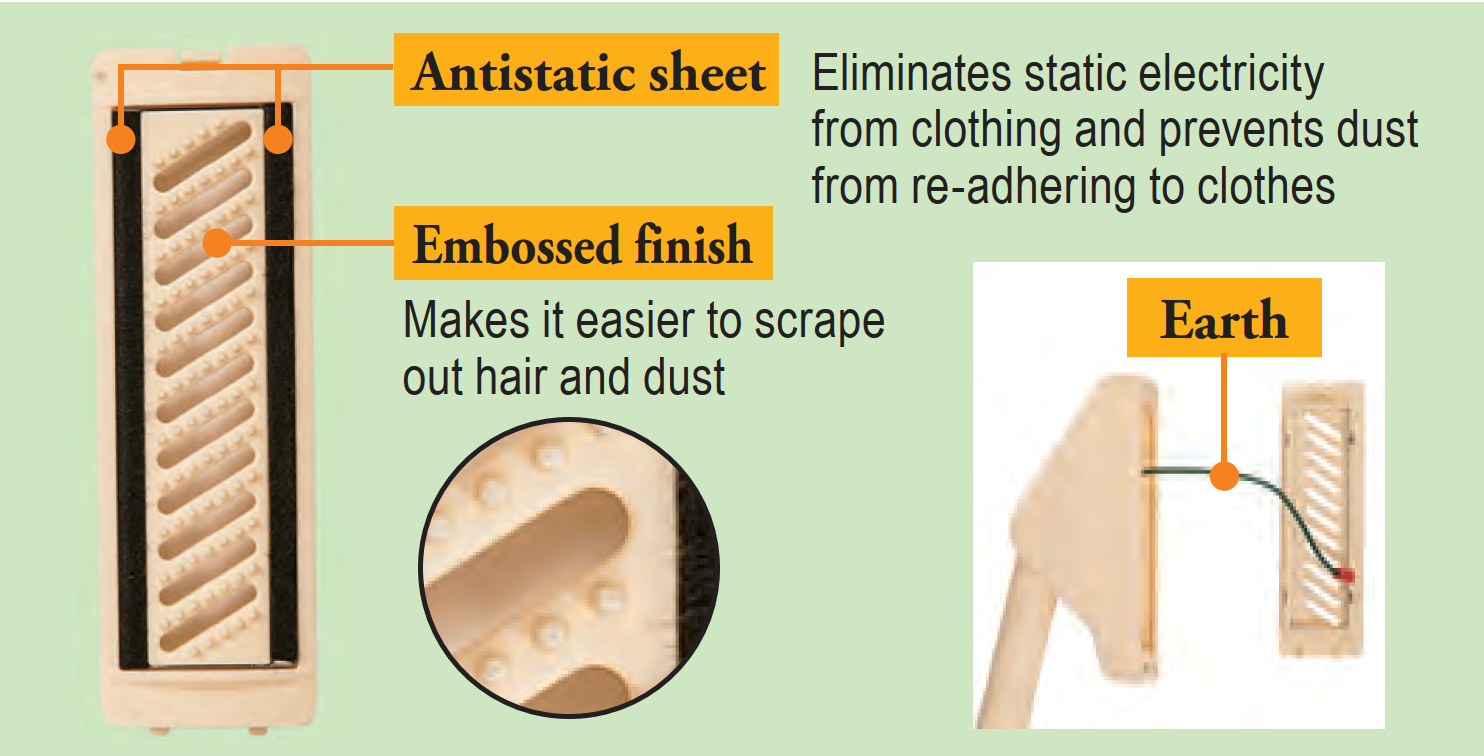

4.Static electricity removal function

The static electricity removal sheet on the nozzle removes static electricity from the body, making it easier to pick up dust and preventing it from re-adhering.

5. Compatible with overseas power supply voltages

Single-phase AC220V specification, so it can be used in China and Thailand

6.Excellent cost performance

It has a long life and is not easily broken, so the lifetime running costs are about half that of conventional brush motors! It is also less expensive than adhesive tape for clothing.

Main unit

❶Indicator Panel　　　　　　
❷Startup sensor

Operation section

❶Filter Box
❷Power Switch
❸Usage time adiustment knob
➍Operation time adiustment knob
❺Suction power adiustment knob

specification

exterior
Product name	Thailand spec	China spec
Model	KHR-C01T	KHR-C01C
Voltage compatible countries	Thailand	China
power supply	Single phase AC220V (50Hz)
Power Consumption	430W
External dimensions	W300×D185×H290ｍｍ
mass	11kg
Material	SUS430 2B
Duct Hose Length	1.8m
Maximum static pressure on floor	20.0kPa
Brushless blower life expectancy	5000h
Operating environment temperature and humidity	5~35℃、35~85%
Safety Device	Overcurrent protection (circuit protector), Blower overheat protection (thermistor, built-in sensor) Filter replacement notification
consumables	Pack filter (replacement interval: 300 min)
Attachments	Duct hose, band, wall-mounted unit, power cord, pack filter

Download Documents

catalog【Chinese】

　

catalog【English】

operating instructions

KHR-C01T

KHR-C01C

Specifications

KHR-C01(English)

Replacement parts

Nozzle unit	Nozzle Panel	Duct Hose	Bag Filter

Uses high-performance bag filters

Large capacity with a surface area of 625c㎡
Made of durable polypropylene nonwoven fabric. Good air permeability, dust and dirt resistant.
Captures more than 95% of particles 40μm or larger
